Upsetting press

Description

Table model

Code: E.200.TM

Use

For determining the compressive strength of cardboard and corrugated board.

Device description

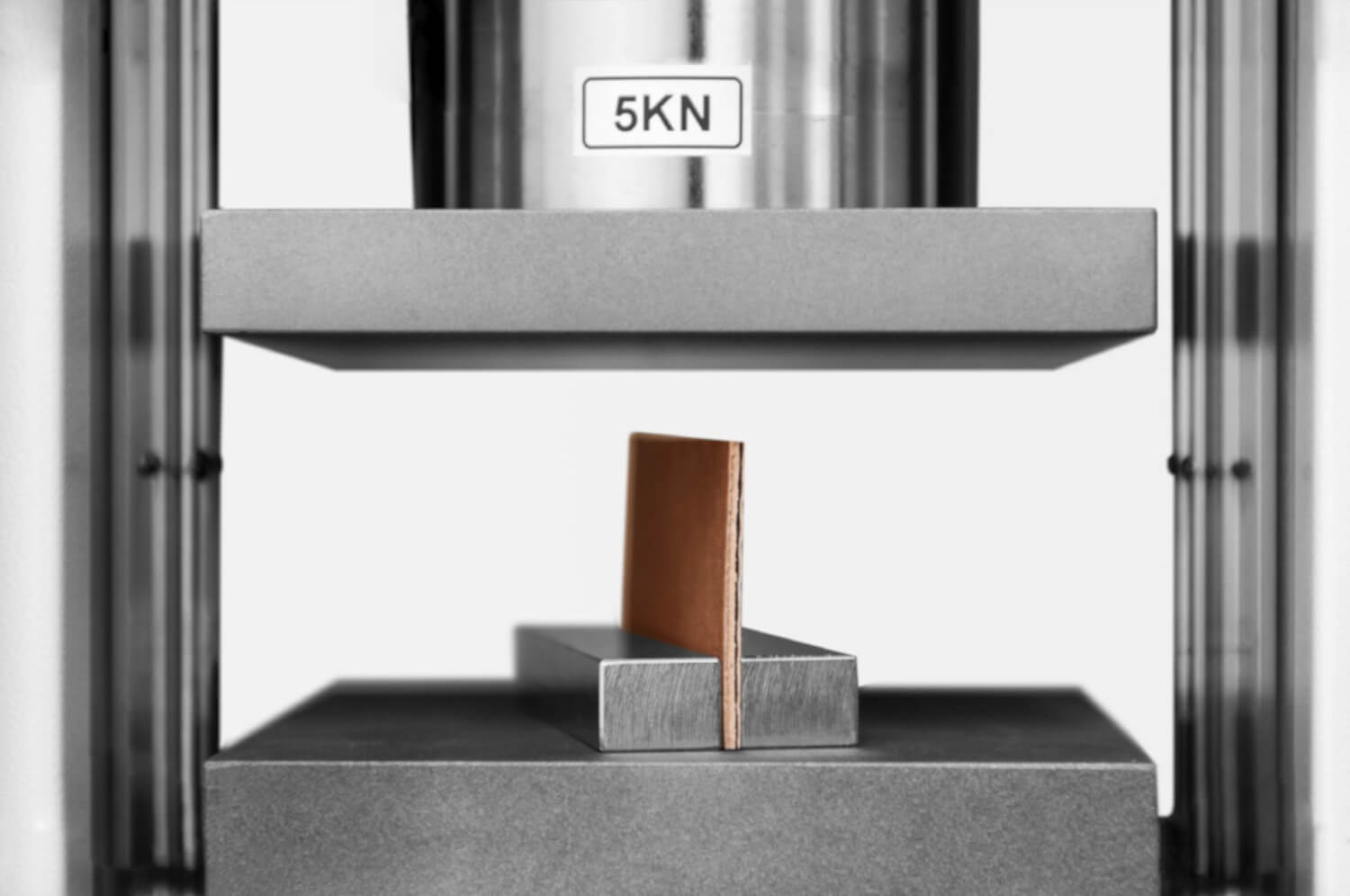

This device has an integrated touchscreen, which makes operation convenient and intuitive. All components are built into a robust metal frame. The measuring range is up to 5 kN with an accuracy of ±1% of the displayed value. The test cycle is fully automatic with breakage detection and return to the starting position after breakage.

Sample holder

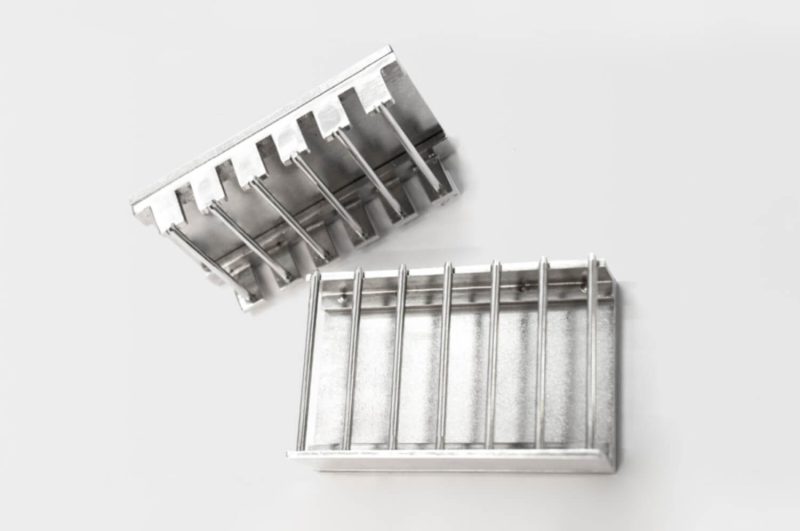

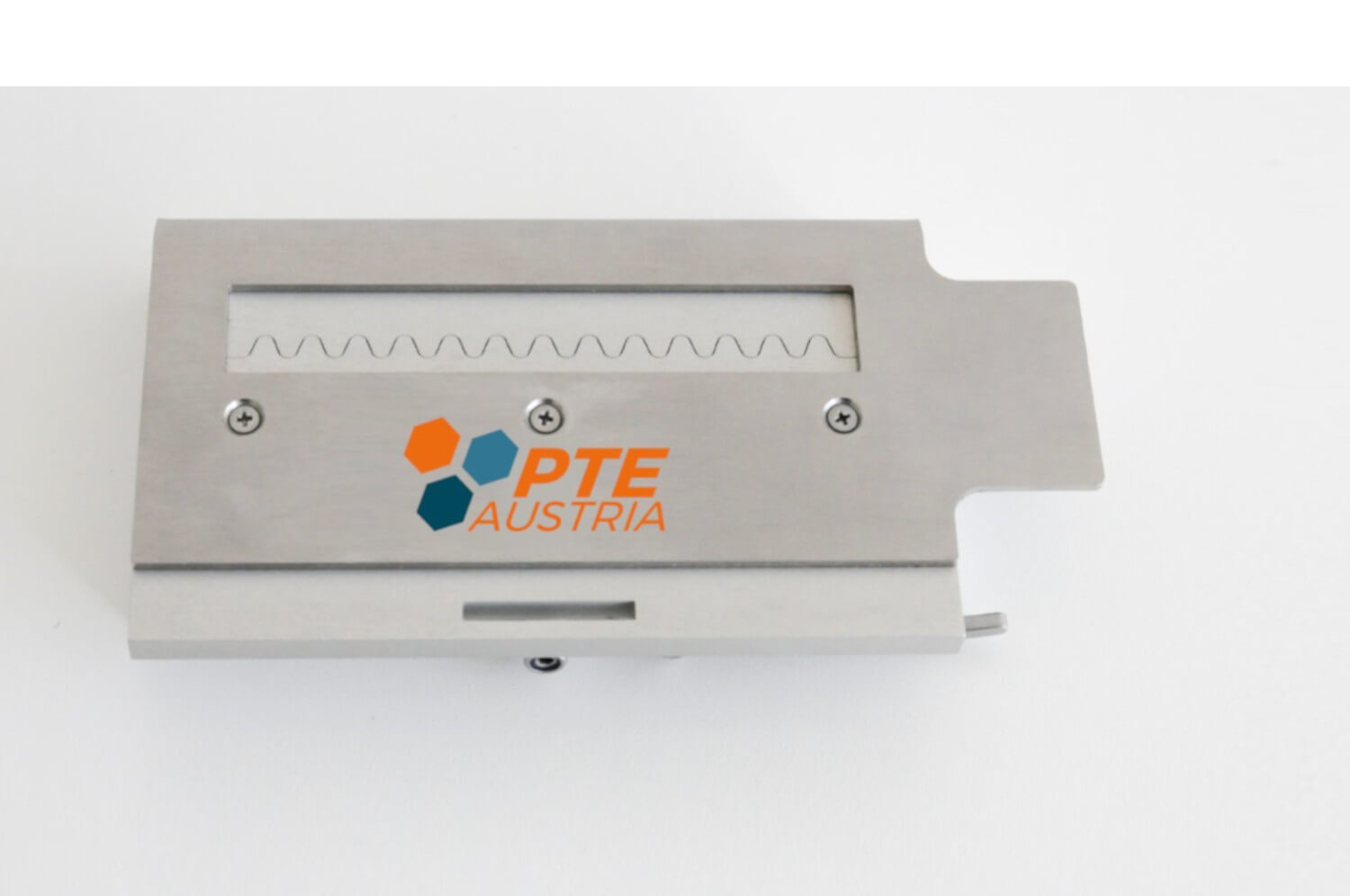

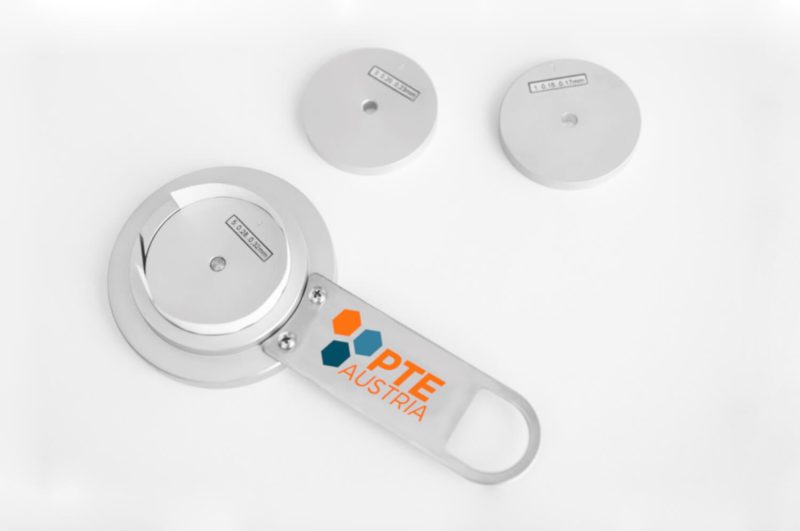

Various sample holders for CCT, RCT, ECT and PAT are available. For more information, download the PDF file.

Features

• High-quality materials and workmanship
• Sturdy construction
• Measuring range up to 5 kN with an accuracy of ±1% of the displayed value
• Intuitive and user-friendly operation via touch display
• Display of breaking force, values, graphs and statistical values
• RS-232/USB interfaces for data transfer and printing
• Windows based software
• Setting of different breakage levels (e.g.: 20%, 15%, 10% of the maximum force)
• Diagram of force/time
• Additional buttons for start and stop next to the touch display
• Emergency switch
• CE certified
• Additional sample holders available for various compression tests

Applicable standards

ISO 3035, 3037, 13805, 13192; TAPPI T808, T809, T811, T818, T821, T825, T893; FEFCO Nº 6-8 & 11; AFNOR 23035; etc.
