Strip crush resistance tester
Streifenstauch-Widerstandsprüfgerät
Streifenstauch-Widerstandsprüfgerät
Streifenstauch-Widerstandsprüfgerät

Strip crush resistance tester

Add to request

Description

SCT

Code: E.215

Use

For determining the compressive strength of paper and cardboard test strips.

Device description

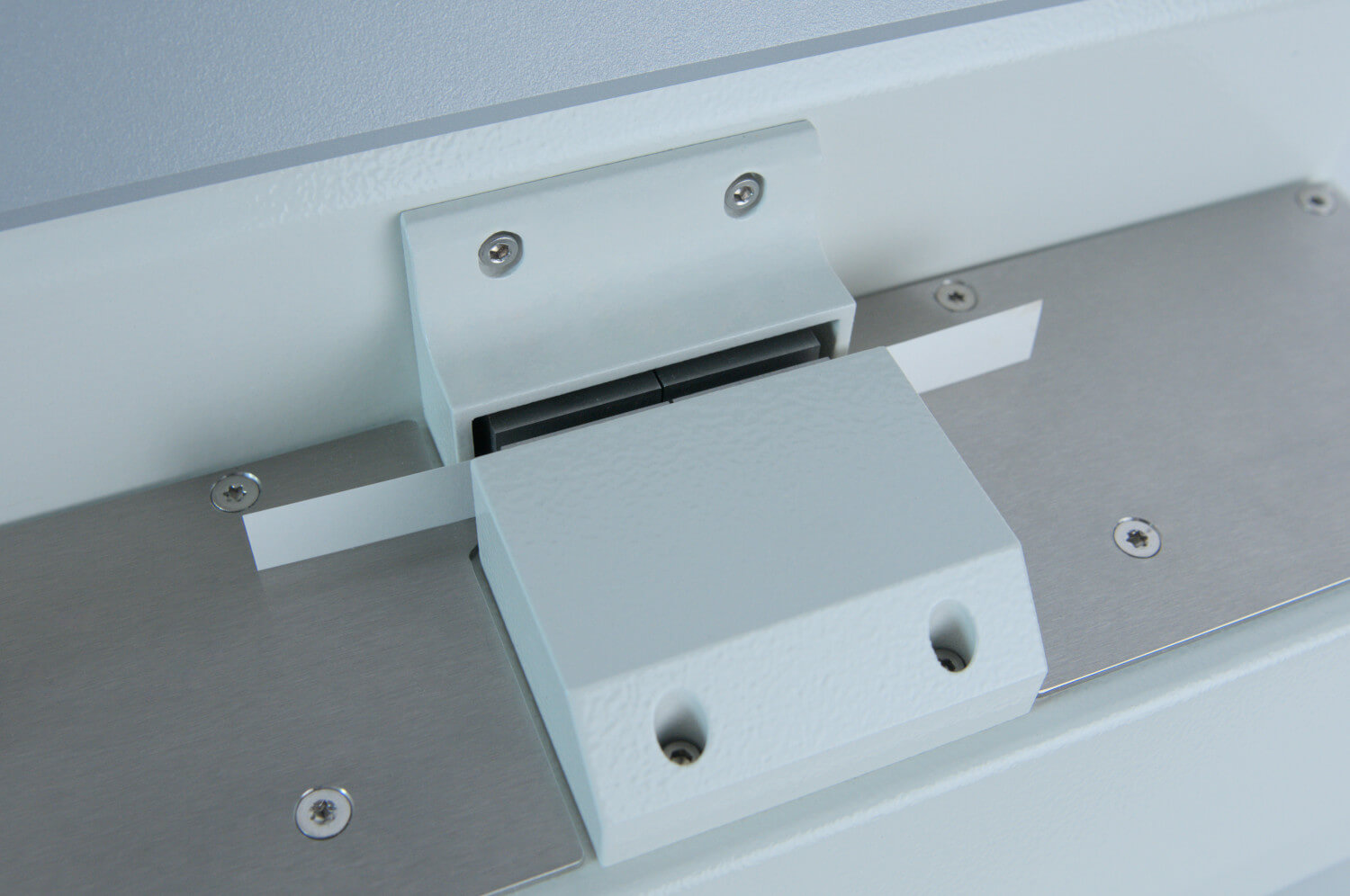

The strip crush resistance tester is used for paper or cardboard strips with a width of 15 mm. The jaws clamp the strip with a defined force and move from 0.7 mm to the center until a break in the sample is detected. The measurement results are shown on the touch display in a curve and in values.

Features

  • Pneumatic sample clamping
  • Adjustable test speed
  • Calculation of the ratio between MD and CD samples
  • Graphic representation on the display

Applicable standards

ISO 9895; TAPPI T826; SCAN P46; DIN 54518; APPITA/AS 1301.450

Specifications

Geschwindigkeitsprüfung und Rückkehr zur anfänglichen Prüfposition

3 ±1 mm / Min

Reichweite

1 - 500 N entspricht 0,6 - 33,3 kN/m

Probenweite

15 mm

Spannweite der Klemmen

0,7 mm

Spanndruck

2 300 ±50 N (einstellbar)

Connections

Spannung

110 - 230 V, 50/60 Hz AC

Druckluft

600 kPa
