Description
Grinding degree tester
Code: P.403.x-xxx
Use
For determining the degree of grinding and the dewatering properties of pulp suspensions.

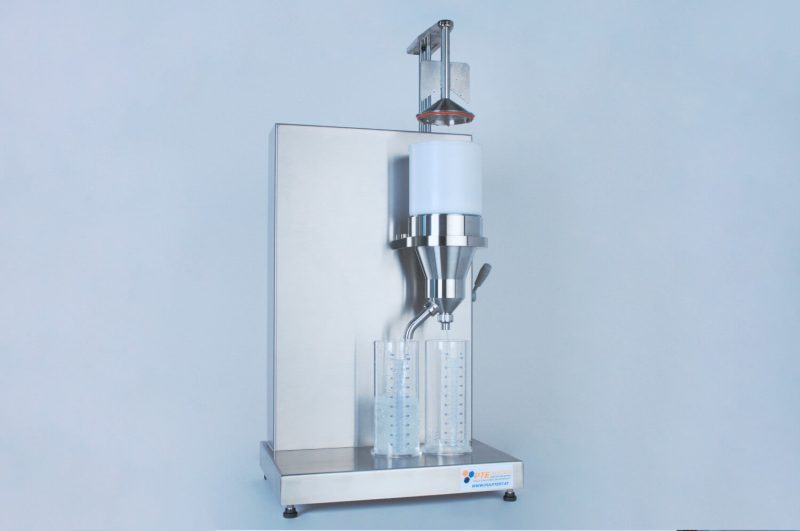

Device description
This high-quality product is characterized by the simplicity of its operation. Only high-quality parts made of stainless steel, aluminum and POM (polyoxymethylene – a very resistant type of plastic) are used in the manufacture of this tester. At the bottom of the filling chamber there is a special sieve which leads into a separating funnel with two openings.
Features
- Pneumatic operation
- Housing and drainage parts made of high-quality, robust & corrosion-resistant stainless steel, anodized aluminium & POM

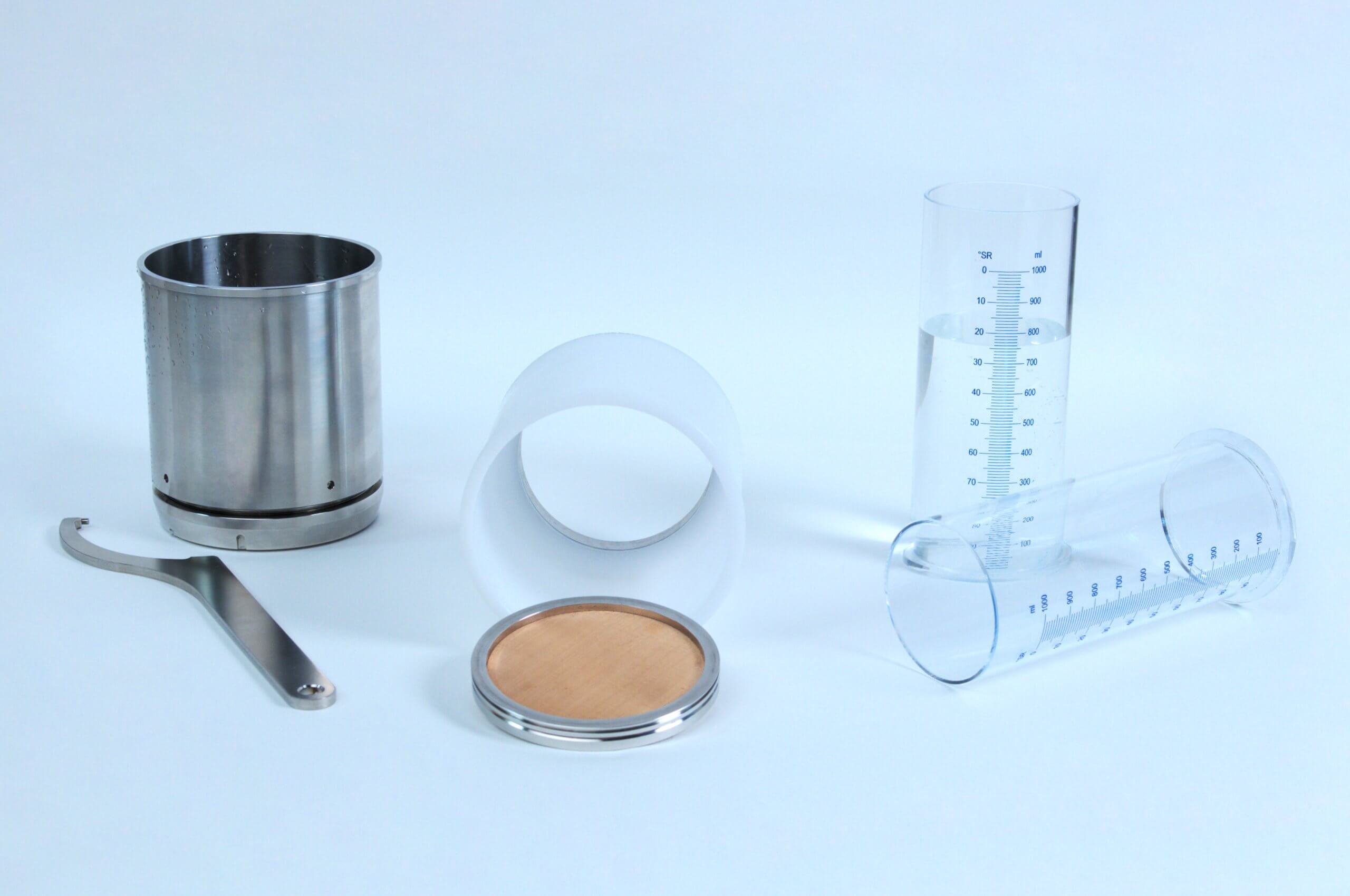

- Replaceable drainage chamber

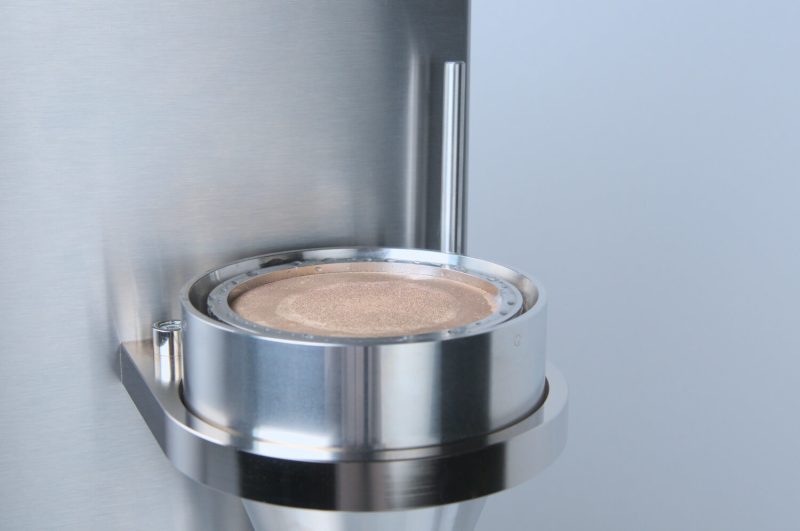

- Quick & easy removal/insertion of the SR sieve
- Easy cleaning
- Nozzle calibrated according to international standards
- Convenient single-lever operation (in compliance with safety regulations)
Applicable standards
ISO 5267-1
Connections
Druckluft | 400 – 600 kPa |

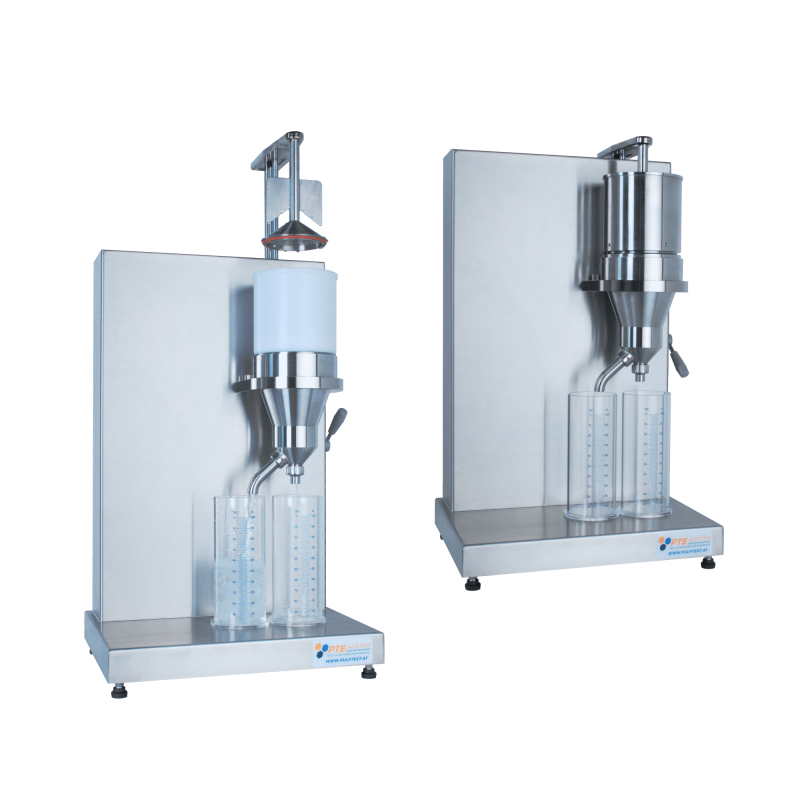

Models
Code | Gerät |
P.403.P-POM | Schopper Riegler pneumatisch mit POM Drainagekammer und Bayonette-Verschluss |
P.403.P-SS | Schopper Riegler pneumatisch |
