Description
Pneumatic
Code: P.110.xxx
Use
For fast and practical pneumatic preparation of large-format samples or A4 samples (210 x 297 mm).
Device description

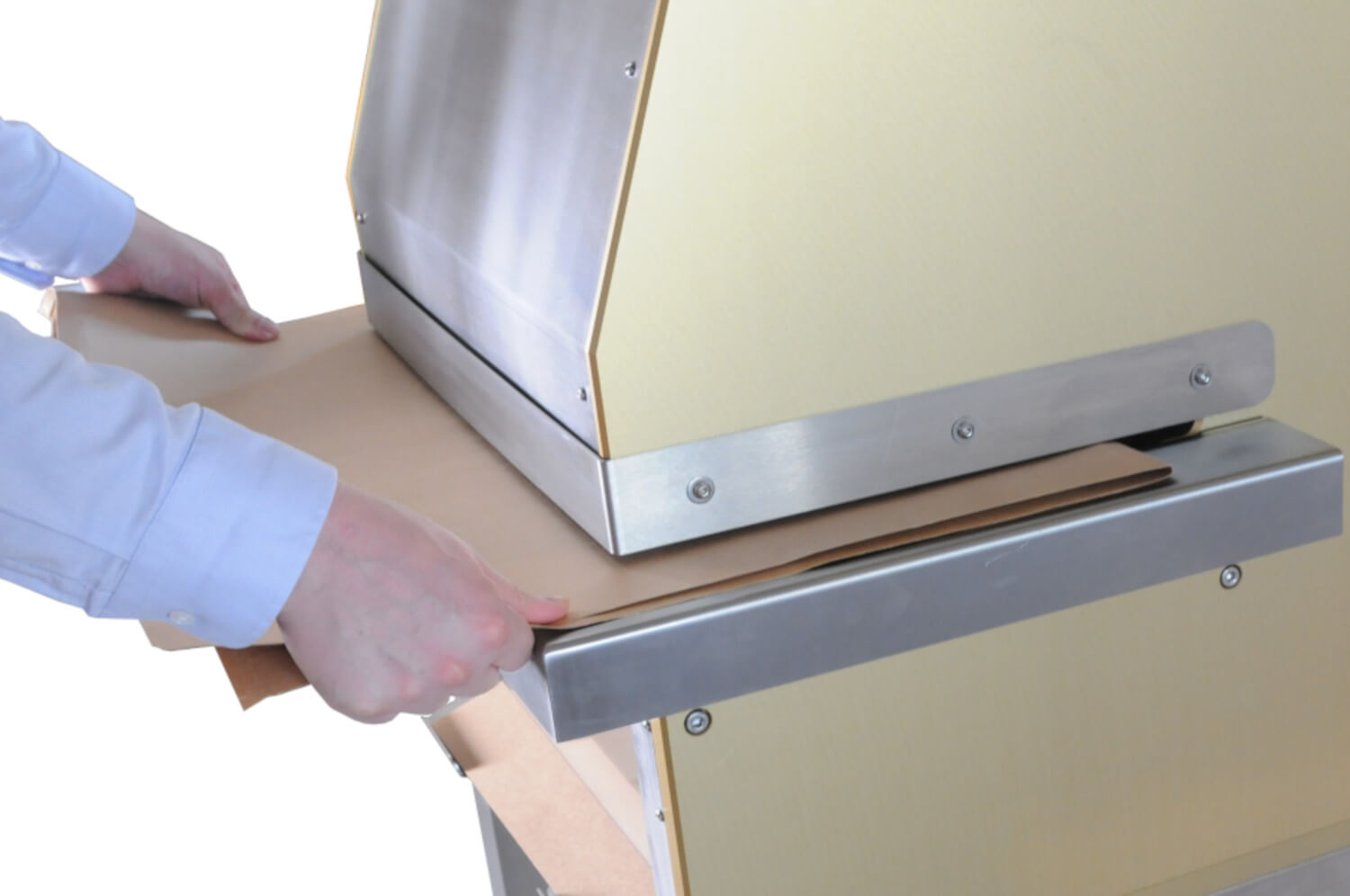

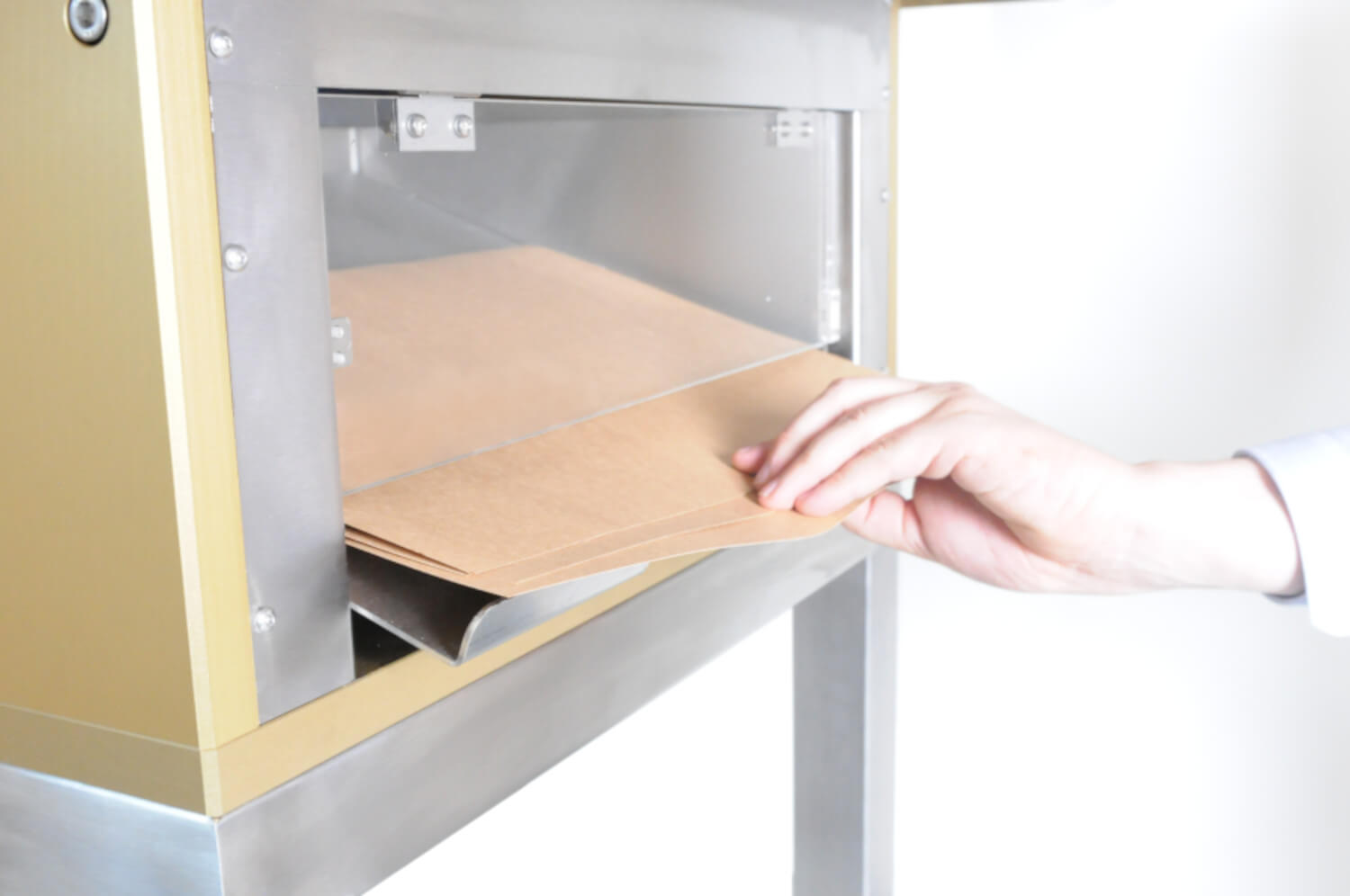

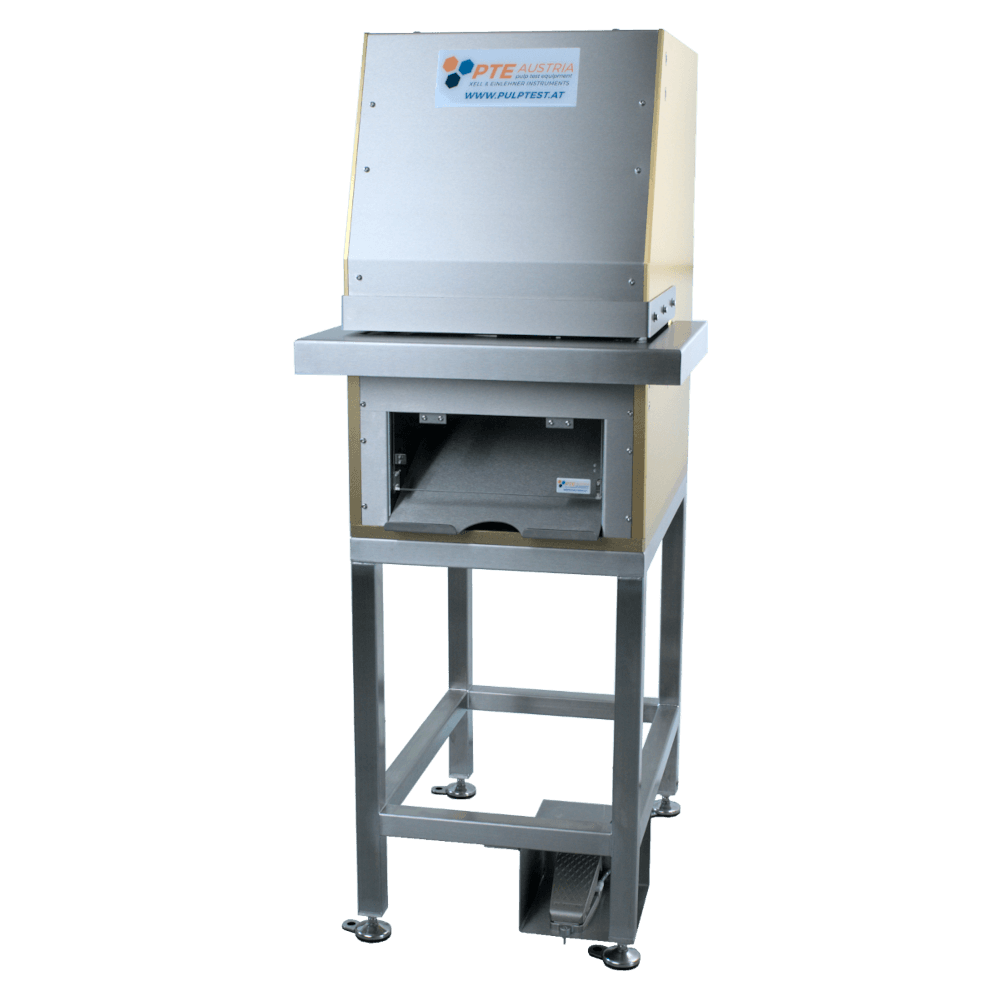

This robust sample punch is ideal for pneumatic punching of A4 samples or samples with large dimensions. The sample material is placed between the safety guard and the stainless steel guide. By pressing the foot switch, the sample is cut out in the desired format using the specially developed punching tools. After the cutting process, the finished sample falls into an easily accessible collecting tray. Safety sensors and guides prevent the punch from being operated before the safety cover is completely closed.
Features
- High-quality materials and workmanship
- Premium cutting blade
- Safety protection devices
- Stainless steel sample guide
- Simple & ergonomic operation with foot switch
- Sample collection tray
- Several samples (depending on thickness) can be punched at the same time
Specifications
Probendicke | bis zu 7,5 mm (je nach Art des Materials) |
Models
Code | Probengröße |
P.110.A4 | DIN A4 (210 x 297 mm) |
P.110.200 | 250 x 200 mm |
P.110.400 | 250 x 400 mm |
Accessories
Code | Beschreibung |
P.110.Z1 | Tambourrollenhalterung |
