Description
Grinding degree tester
Code: P.404.D
Use
For determining the degree of grinding and the dewatering rate of pulp suspensions in accordance with Canadian standards.
Device description

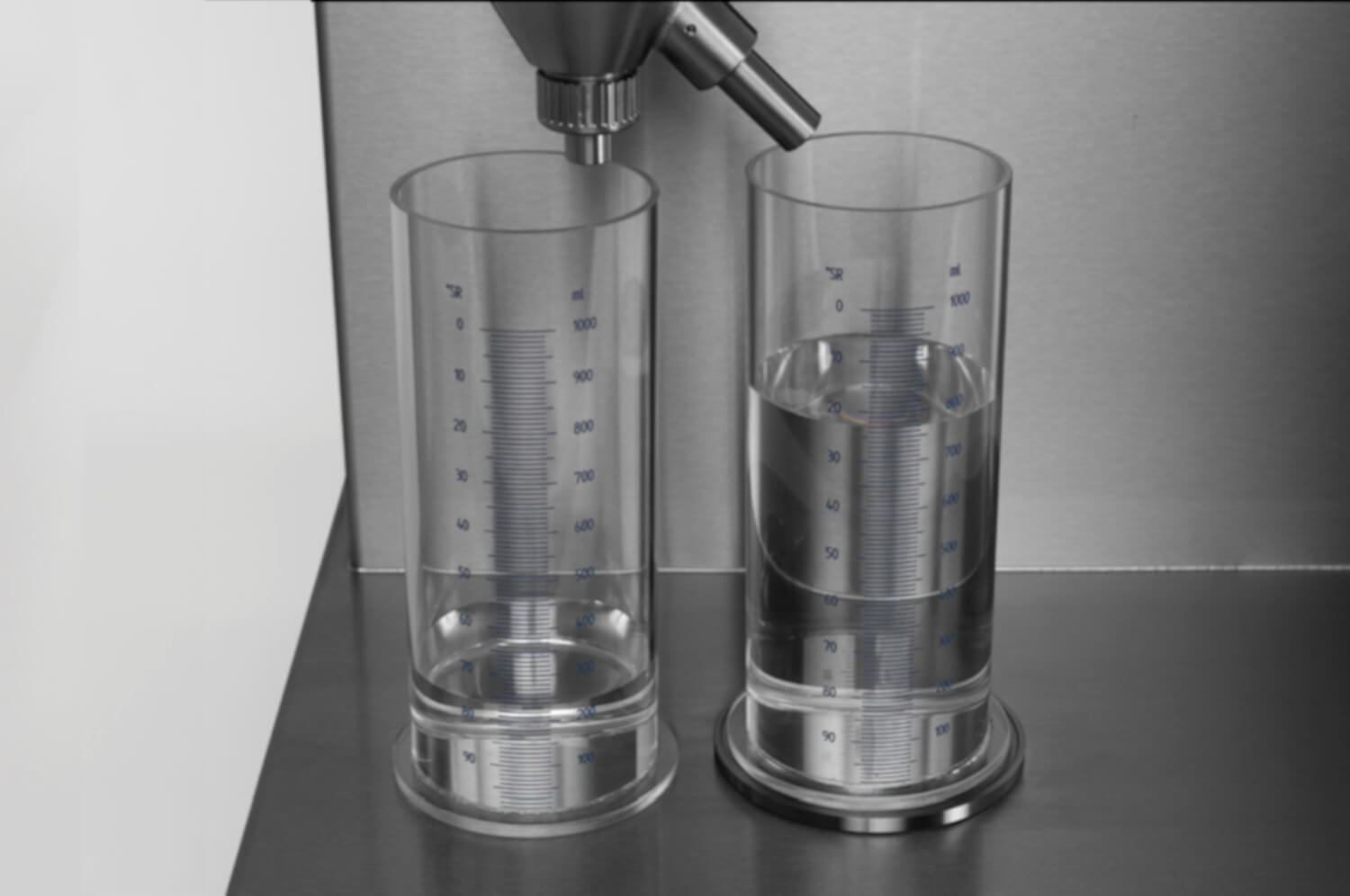

The PTE Austria CSF grinding degree tester – Digital consists of a sturdy stainless steel frame with integrated scales for precise measurement results and a 10″ touchscreen for quick and easy operation. On the stainless steel housing there is a cylinder with a capacity of 1,000 ml and a special sieve plate as well as a funnel which guides the suspension water from the cylinder into the continuously weighed measuring cup.
Features
- Highest quality materials and workmanship
- Extra-light drainage chamber made of high-quality POM
- Stainless steel frame
- Robust stainless steel housing
- Automatic measuring process
- Operation via the integrated 10″ touch display
- USB and Ethernet interface
- PTE Austria’s own software
- Intuitive and user-friendly operation
Applicable standards
ISO 5267-2; TAPPI T227; SCAN C21/M4
Connections
| Spannung | 110 – 240 V, 50/60 Hz AC |
|---|---|
| Druckluft | 400 – 600 kPa |
Models
| Code | Beschreibung |
|---|---|
| P.404.D | CSF digital |
| P.404.DT | CSF digital mit Temperaturkontrolle |
