Burst pressure tester

Description

for paper and cardboard

Code: E.204.xxx

Use

For determining the bursting strength and bursting energy absorption (BEA) of paper and cardboard.

Device description

The specially developed housing, which is equipped with a user-friendly touch panel as standard, provides an excellent basis for the high-precision measuring mechanism of the burst pressure tester. This essentially consists of a clamping bell and the diaphragm, as well as high-precision pressure and force sensors. To protect the touchscreen, the start button attached separately to the device can also be used instead of the start button.

Features

• High-quality materials and workmanship
• Motorized hydraulics (glycerine)

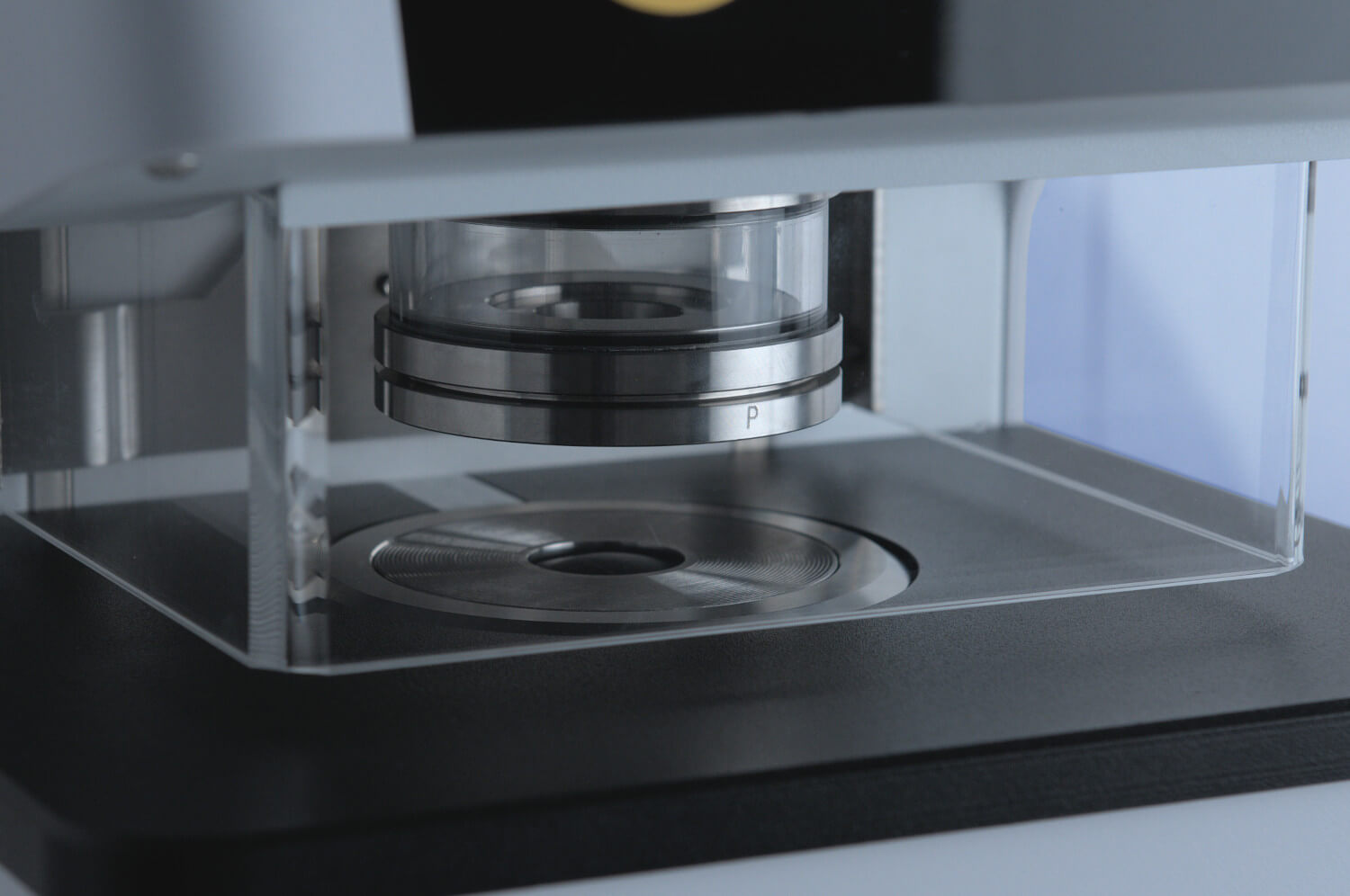

• Safety cover lowers in front of the clamping bell

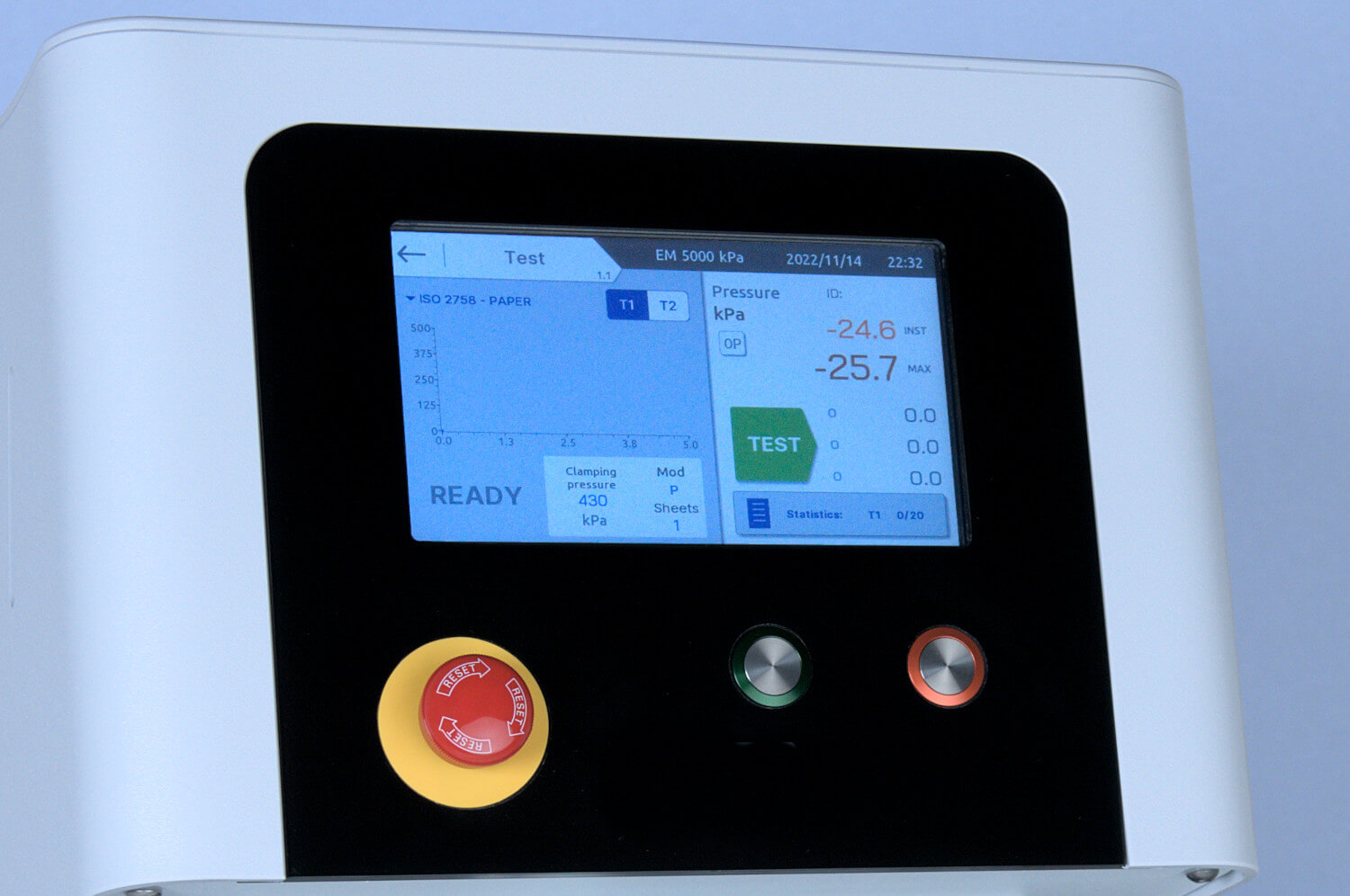

• Simple and intuitive operation via touch display
• Display of breaking force, values in diagrams, statistical values and BEA
• Upper and lower values can be saved separately and the duration can be calculated
• compatible with the NOVILOG software
• RS232 and USB interface

Applicable standards

For paper: ISO 2758; TAPPI T403, T807; PAPTAC D19P; SCAN P24; etc.

For cardboard: ISO 2759; TAPPI T810, T807; PAPTAC D29P; SCAN P25; FEFCO No. 4; etc.
